Various flow field

Flow field of wing edge

Computational conditions

Specular reflection on top boundary Bottom boundary Left Specular reflection Right Random reflection

Results

Density distribution	Temperature distribution	Pressure distribution

Taylor-Couette flow

Computational conditions

Axial symmetry Left wall rotates Symmetry on top and bottom wall Right wall stationary

Results

Density distribution	Temperature distribution	Velocity distribution

Crossing flow of vertical board

Computation conditions

Top wall Specular reflection Vertical board Maxwell type reflection(Adaptive coefficient 0.5)

Results

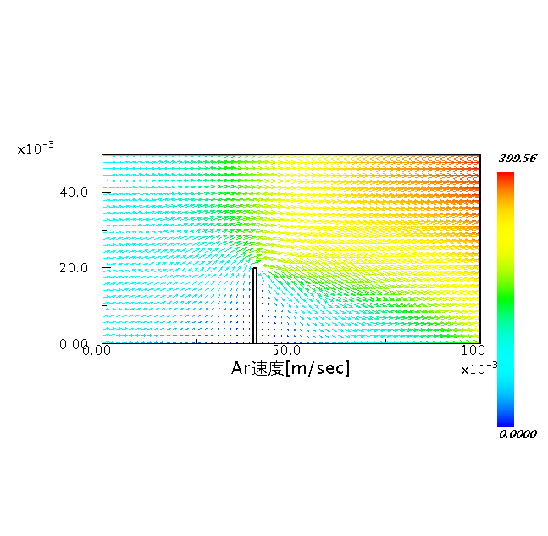

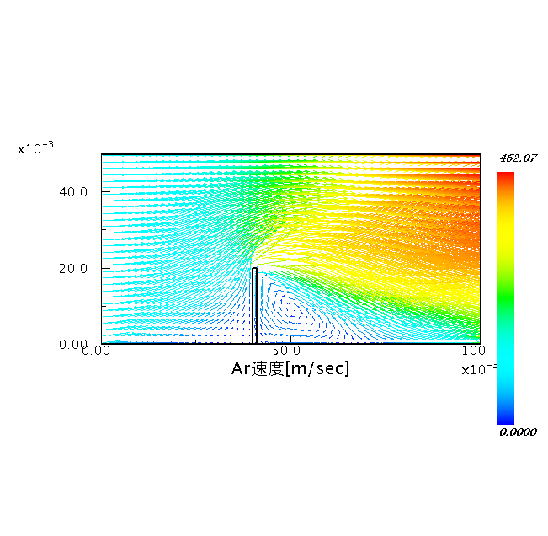

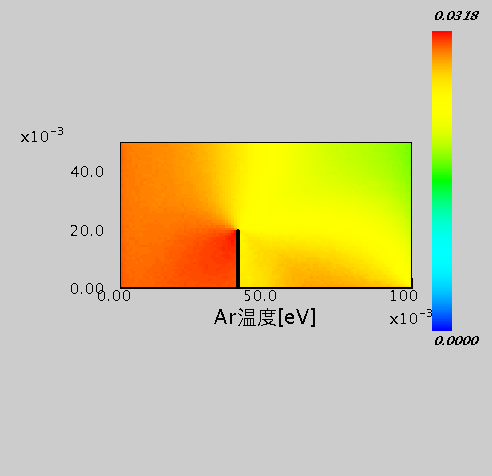

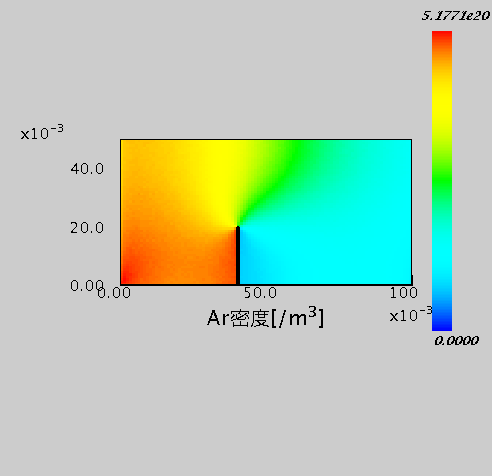

	Density distribution	Temperature distribution	Velocity distribution
Kn=0.1
kn=1.0
Kn=10.0

Benard flow

Computational conditions

Top wall Low temperature,random refelction Bottom wall High temperature,random eflection Left,right wall Specular reflection With gravity

Results

Density distribution	Temperature distribution
Pressure distribution	Velocity distribution
